A great 1:64 scene can lose its realism when a mechanic tips over, a photographer slides across the pavement, or a standing figure looks like it is floating above the base. Diorama figure mounting is the small technical step that keeps a display believable, durable, and ready for diecast photography. The right method depends on your surface, whether you want to move the figure later, and how much handling the scene will receive.
For a shelf display, a simple removable method may be all you need. For a permanent garage, street scene, or show piece, pinning or adhesive usually gives better long-term results. The goal is not just to make a figure stay upright. It is to make the mounting disappear into the scene.
Start With the Surface, Not the Figure
Before choosing glue or drilling holes, look at the base material. Foam board, insulation foam, wood, acrylic, styrene sheet, resin, and printed pavement all behave differently. A method that works perfectly on MDF can tear up a foam sidewalk or crack a thin resin base.
Texture matters too. A figure on smooth painted plastic needs more grip than one standing on coarse terrain paste. If the scene includes loose grass, gravel, or snow effects, attach the figure before applying the final scatter material whenever possible. That lets you blend the feet into the ground instead of placing them on top of the finished texture.
Also check the figure's pose. Two flat feet offer the easiest mounting point. A walking figure with one foot touching the ground, a seated figure leaning on a fender, or a person holding a tool may need support from another contact point. Do not expect a narrow boot sole to carry the full load of a figure that leans sharply forward.
Diorama Figure Mounting Options
There is no single best method for every display. Most builders use a mix of temporary and permanent mounting methods based on the scene's purpose.
Removable putty for flexible layouts
Museum putty, mounting putty, and similar reusable products are useful when you regularly rearrange vehicles and figures. A tiny amount under each foot is often enough for 1:64 scale figures. It works especially well for diecast photography, where you may want to adjust a pedestrian's position by a few millimeters until the composition looks right.
Use less than you think you need. Too much putty can squeeze out around the shoes and look like a dark lump on the pavement. It can also collect dust over time. Putty is best for indoor displays on level surfaces, not for shipping a completed diorama or displaying it where it will be bumped often.
Double-sided tape for quick placement
Thin double-sided tape is another temporary option, particularly for flat-footed figures on smooth bases. It is fast, clean, and does not require curing time. Cut a piece smaller than the bottom of the foot so it cannot be seen from normal viewing angles.
The trade-off is that tape can lose adhesion with heat, dust, and repeated repositioning. It may also lift paint from a base when removed. Consider it a convenient staging method, not a permanent structural fix.
PVA glue for terrain and lighter figures
White glue, tacky glue, and other PVA adhesives work well when mounting figures to porous surfaces such as wood, foam, plaster, or textured ground. They dry clear, give you time to adjust the pose, and are more forgiving than super glue.
PVA is particularly useful for figures that need a little terrain blended around their feet. Apply a small amount to the sole, press the figure into place, and remove any excess before it dries. Once cured, add dust, grass, fine sand, or ground texture around the shoes to tie the figure into the scene.
PVA is not ideal for a smooth, nonporous base or a figure with very little foot contact. It can also remain slightly flexible, which is not always what you want for a heavily handled display.
CA glue for permanent mounting
Cyanoacrylate, often called super glue or CA glue, is a dependable choice for permanent diorama figure mounting on plastic, resin, metal, painted wood, and many other hard surfaces. A gel formula gives more control than thin CA and is less likely to run across your finished base.
Use a toothpick or fine applicator to place a tiny dot under each foot. Hold the figure steady until it grabs, then let it cure fully before moving the scene. Excess CA can leave a shiny mark or fog nearby paint, especially on dark pavement or clear plastic. Good ventilation and small amounts make a big difference.
CA is strong, but it is also brittle. A figure glued directly to a base may snap loose if the diorama is dropped or flexed. For fragile poses and display pieces that travel, pinning is usually the better answer.
Pinning for the strongest hold

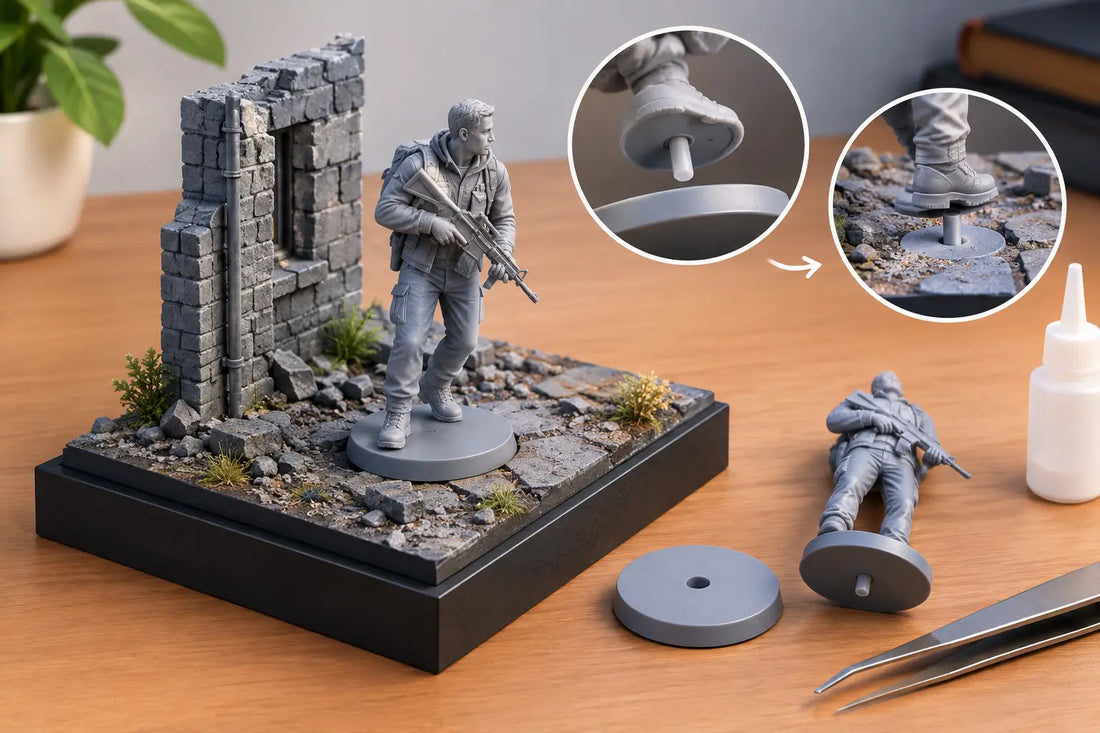

Pinning means adding a short wire pin to one or both feet, then inserting that pin into a drilled hole in the base. For serious display builds, it is one of the cleanest and most reliable methods available.
Use fine brass rod, steel wire, or a straight pin sized to match the figure. Drill a shallow hole into the foot, insert the wire with a small amount of CA glue, then trim it to the length needed for the base. Mark the figure's position, drill the matching hole in the ground, and test-fit before gluing.
For a 1:64 figure, the pin does not need to be long. Even a short section seated securely in both the foot and base can prevent tipping. Pinning is especially helpful for one-foot poses, figures leaning against vehicles, and figures placed near the edge of a display.
Make the Figure Look Grounded
A stable figure can still look wrong if its feet do not belong to the surface. The final detail is blending. On asphalt, use a light dusting of gray or tan pigment around the soles. On dirt, add fine soil and a little matte medium. In grass, press a few fibers around the shoes so the figure appears to be standing in the terrain instead of on a green carpet.
Check the figure at eye level and through your camera lens. What looks acceptable from above may reveal a visible glue gap in a close-up diecast photo. Side lighting is useful here because it exposes shadows under the shoes and any shiny adhesive residue.
For figures painted at home, consider mounting after the paint has cured completely. Handling a freshly painted figure while pushing it into glue or terrain can rub off detail from hands, hats, tools, and clothing. A matte clear coat can also help protect the finish before the final installation.
Position Figures With a Purpose
Mounting is easier when a figure's pose matches the scene. A person holding a camera should face the car or action being photographed. A mechanic should stand close enough to the vehicle to plausibly reach the engine bay. A spectator should not have one foot buried in the curb because the mounting hole was placed before the vehicle layout was finalized.
Set your cars, buildings, tools, barriers, and background pieces in place first. Then test figures without glue. Take a few photos from the intended viewing angle, especially for 1:64 scale scenes where a small position change can alter the whole story. Once a figure is mounted, moving it may require repairs to the base.
If you need a pose that is not available in your scale, a custom print can be a practical solution. DoubleGDiecast can help builders who need figures printed beyond standard catalog scales, including HO, 1:24, 1:32, and 54mm. A figure designed for the exact job often mounts more naturally than forcing a generic pose into the scene.
Avoid These Common Mounting Mistakes
The most common mistake is using too much adhesive. Thick glue pools draw attention to the feet and can raise the figure above the ground. Another is mounting before planning sightlines. A figure may be stable but block a vehicle detail, door opening, sign, or camera angle.
Do not force a warped figure flat with glue alone. Warm it carefully according to its material, straighten the legs or feet, and test the stance first. If both feet cannot touch the ground naturally, use a pin, a hidden support point, or terrain that gives one foot a believable raised position.
Be cautious with clear parts, glossy painted surfaces, and finished diecast bodies. CA glue can fog clear plastic, while stronger adhesives may damage paint if a figure needs to be removed. For a figure leaning on a vehicle, removable putty or a tiny concealed support is often safer than permanent glue.
A well-mounted figure should not call attention to the method holding it in place. It should simply look like it belongs there, whether it is directing traffic beside a 1:64 tow truck, working in a garage, or waiting at the edge of a scale street. Take the extra few minutes to test the stance, choose the right attachment method, and blend the feet into the surface. That is where a collection of parts starts to feel like a real scene.
